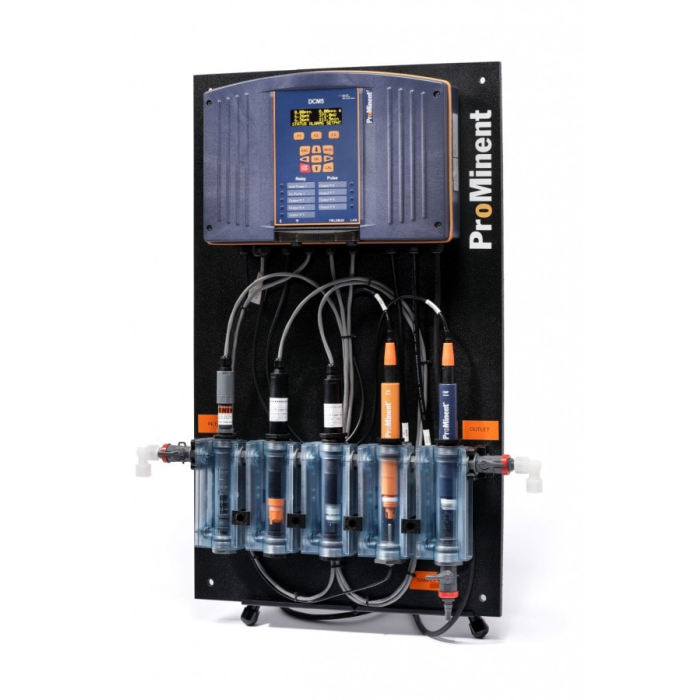

ProMinent DCM510 Controller Complete w/pH, ORP & Temp Serial No.: ___________________________
1080771
$7,476.07
Programmable, bi-directional control, with alarm notifications for monitoring and controlling of multiple components of the chemical feed system.
Five AC line powered outputs on/off, time based, and proportional of pH, ORP and PPM and two other programmable
Two DC switching outputs pulsing or on/off controls
Six fixed digital input, one assigned for flow switch, all others are assignable
Indicating LED alarms on front panel for easy detection of an alarm
Seven user assignable passwords, public, operator, configure and administer
Modular Sensor Housing (DGMa) hydraulically advanced flowcell assembly with built in flow switch
USB host data log upload port
Communications, a 10 Base T, RJ45 Ethernet port than can use a fixed or Dynamic IP address
The controller operates as an HTML micro-server for command and control
Interface with ProMinent Ultraviolet Sanitization System, savings recognized with the ability to monitor and control chloramines
Applications:
Swimming pools
Therapy pools
Hot tubs
Water parks
Splash pads
Amusement Park Attractions
Zoos and Aquariums
Select Unit Above
1080771 - DCM 510, pH & ORP
1080772 - DCM 511, pH, ORP, PPM Sensor for Non-Stabilized Water
1080773 - DCM 512, pH, ORP, Free Chlorine PPM & Total Chlorine PPM for Non-Stabilized Water
1080774 - DCM 513, pH, ORP, Free Chlorine PPM Sensor for Stabilized Water
